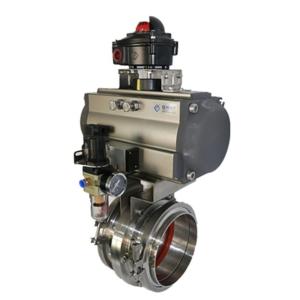

Sanitary Stainless Steel Clamp Butterfly Valve DN50 - 1200 With Multi Position Actuator

Name: Sanitary Stainless Steel Clamp Butterfly Valve DN50 1200 With Multi Position Actuator
Brand: GRAT
Price: 1 USD

China Sanitary Stainless Steel Clamp Butterfly Valve DN50 - 1200 With Multi Position Actuator wholesale

Brand Name : GRAT

Model Number : EB-000029

Certification : IP67,CCC, ISO, CE、CNAS

Place of Origin : Wuhan, Hubei, China

MOQ : 1 pc

Price : USD $10.00/ Piece

Payment Terms : LC, T/T, D/P, PayPal, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 3 working days

Packaging Details : Carton/Wooden Box

Media : Water

Driving Mode : Electric

Connection Form : Clamp

Structure : Centre Sealing

Seal Form : Auto Sealed

Valve Stem : Normal

Working Temperature : Medium Temperature (120°C

Valve Body : Casting

Application : Industrial Usage, Water Industrial Usage, Food, Lubrication, Fibrous Fluid, Water, Oil, Gas.

Medium : Water, Oil, Gas

Work Pressure : Mid-Pressure (2.5mpa< Pn <6.4mpa)

Material of Seal Surface : Soft Sealed

Standard : ASME

Size : Dn50-1200

HS Code : 8481804090

Contact Now

Sanitary Stainless Steel Clamp Butterfly Valve with Multi-Position Actuator

Product Description:

Sanitary Stainless Steel Clamp Butterfly Valve with Multi-Position Actuator/IP67/Metal Hard Sealed

Description:

Grat electric butterfly valves have the structure of 3D eccentric metal sealed, whose seal mode is

metal-to-metal, also can be changed into the other seal modes such as the metal seal ring to

the metal, and the stainless steel plate seal ring or the graphite composite plate seal ring to the metal.

This 3D eccentric metal seal butterfly valve with high performance is a device to regulate and cut off

the medium of those piping in petroleum, chemical, power, metallurgy and city heat supply system.

Specification:

Body ratings PN1.0/PN1.6Mpa/PN2.5Mpa

Valve size DN50-DN1200

Seal material Alloy metal seal

Stem seal NBR, HNBR, PTFE, GRAPHITE

Body material WCB/SUS304/SUS316L/CF8/CF8L Stainless Steel

Disc material WCB/SUS304/SUS316L/CF8/CF8L Stainless Steel

Body connections Wafer/flange

Power supply AC220V

Control signal 4~20mA 0~5V

Output signal 4~20mA 0~5V

Operating pressure PN1.6Mpa, PN2.5Mpa

Medium temperature Below 540 Celesius degree

Installation Diagram

The material for main parts

Item
Part name
Material

1
Body
Carbon steel,CF8 Stainless steel,CF8M Stainless steel,CF3M Stainless steel

2
Disc
Carbon steel,CF8 Stainless steel,Cram Stainless steel,CF3M Stainless steel

3
Rotatable shaft
2Cr13,304 Stainless steel,316 Stainless steel,316L Stainless steel

4
Disc seal ring
all kinds of stainless steel composite

5
Shaft sleeve
ZCuZn38Mn2Pb2,stainless steel composite, PTFE

6
Packing
Grafoil

Control Diagram

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.

Product Tags:
Stainless Steel Clamp Butterfly Valve

Sanitary Clamp Butterfly Valve DN50

Sanitary Stainless Steel Butterfly Valve DN1200
